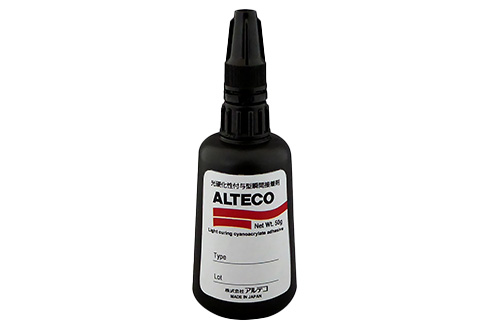

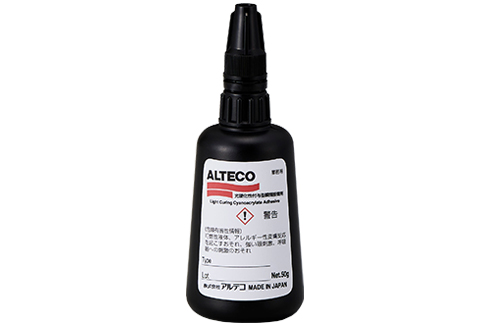

Light Curing Cyanoacrylate Adhesive
Cyanoacrylate with UV and visible light curing chemistry.
Features
Moisture Curing + Light Curing
Standard use as Cyanoacrylate adhesives.
Shadow area cures with moisture curing chemistry.
Time Caving
Adhesion strength reaches immediately after light exposure, can reduce curing time.
Prevent Blooming
Rapid curing by UV prevents blooming phenomenon as instant adhesive-specific and doesn’t impairing the beauty of appearance.
For Hard-to-Bond Materials
Bonding PP and Silicone rubber to use primer for hard-to-bond.
Product Description
| Product Number | HK3X | HK100X | HK500X | HKV10X |
|---|---|---|---|---|
| Viscosity (m㎩・s) | 3 | 100 | 500 | 1000 |
| Appearance | Pale Green, Transparent | Pale Green, Transparent | Pale Green, Transparent | Pale Green, Transparent |
| Hardness (Shore D) | 85 | 85 | 85 | 85 |
| Tg（℃） | 140 | 140 | 140 | 140 |
Light Curing Time (sec) 100mW/㎠ 365㎚
| Product Number | HK3X | HK100X | HK500X | HKV10X |
|---|---|---|---|---|
| Exposure Time | 1 | 1 | 1 | 1 |
Set Time without UV (sec)
| Product Number | HK3X | HK100X | HK500X | HKV10X |
|---|---|---|---|---|
| Steel | 10 | 30 | 30 | 45 |
| Aluminum | 10 | 30 | 30 | 40 |
| ABS | 8 | 15 | 15 | 17 |
Tensile Shear Strength (N/㎟) without UV
| Product Number | HK3X | HK100X | HK500X | HKV10X |
|---|---|---|---|---|
| Steel | 15 | 15 | 15 | 15 |
| Aluminum | 8 | 8 | 8 | 8 |
| ABS | 6* | 6* | 6* | 6* |
| Polypropylene ** | 6* | 6* | 6* | 6* |
| Silicone Rubber | 0.5* | 0.5* | 0.5* | 0.5* |
**：Used with Primer
Volume
| HK3X | HK100X | HK500X | HKV10X | |
|---|---|---|---|---|
| 20g | – | – | – | – |
| 50g | 〇 | 〇 | 〇 | 〇 |
| 100g | – | – | – | – |
| 500g | 〇 | 〇 | 〇 | 〇 |
| 1kg | 〇 | 〇 | 〇 | 〇 |
