Professional Use

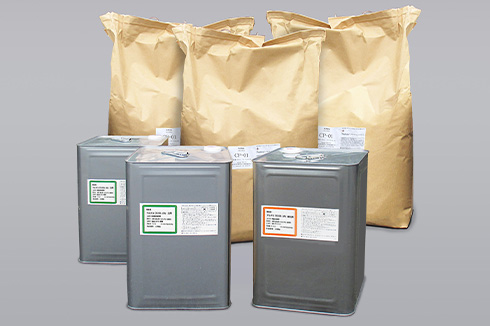

Abrasion Resistant Epoxy Putty

For use as joint filler for UFC panels, and for filling and repairing concrete defects and gaps.

Features

CE-58 (W)・CP-01

・Abrasion resistance equivalent to UFC panels.
・Excellent adhesion to concrete.
・Solvent free - no volatile components.
・Excellent water and chemical resistance after cured.

Low VOC / Formaldehyde Emission
Compliant with JAIA F★★★★ and 4VOC standards – Japan’s strictest safety criteria for indoor air quality.
Suitable for use in living spaces requiring low chemical emissions.

Typical Applications

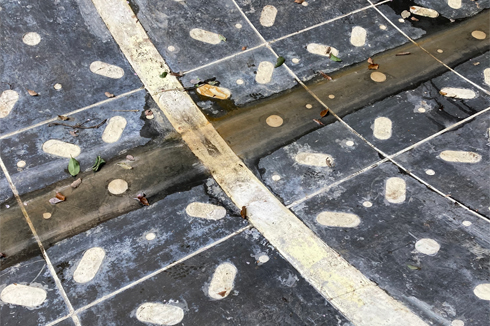

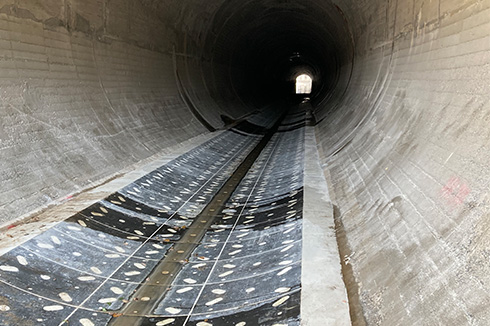

・Joint filling grout for UFC (ultra high strength fiber reinforced concrete) panels.
・Filling and Repair of Concrete Defects and Gaps.
・Wear Prevention for Water-Resistant Areas.
・Bolt Hole after treatment for UFC Panels installations.

Properties

	CE-58 (W)		CP-01
	Base Resin	Hardener	Filler
Main Component	Modified Epoxy Resin	Modified Polyamine	Ceramic Powder
Appearance	Colorless, Transparent Liquid	Pale Yellow, Liquid	Gray Powder
Mix Ratio	Base Resin：Hardener：CP-01＝2：1：5
Pot Life at 20℃	30min

For pot life at 30℃：Please contact us separately.

Pot Life Curing Time at Temperatures

Temperature	CE-58 (W)＋CP-01
Temperature	Pot Life (100ml)	Tack-Free Time (10ml)	Curing Time (10ml)
5℃	80min	16h	48h
10℃	60min	5h	24h
20℃	30min	3h	8h

Curing conditions: 20℃ for 7 days
Test temperature: 20℃

Cured Material Properties

	Unit	CE-58 (W) ＋CP-01
	Unit	Internal Standard	Test Procedure
Specific Gravity		1.7±0.2	JIS K 7112
Compressive Yield Strength	N/㎟	≧60	JIS K 7181
Tensile Shear Strength	N/㎟	≧10	JIS K 6850
Charpy Impact Strength	kJ/㎡	≧1.5	JIS K 7111
Hardness	HDD	≧80	JIS K 7215

Curing conditions: 20℃ for 7 days
Test temperature: 20℃

Taber Abrasion Tester

Type	Abrasion Loss
CE-58 (W)＋CP-01	0.30g
UFC	0.28g

Number of Cycles: 1,000 (70 rpm)
Abrasive Wheel: H-22
Load: 500g

Adhesive Strength (BRI Method)
BRI = Building Research Institute (Japan)

	Unit	Concrete / SUS
Dry Surface	N/㎟	3.4 (Concrete Failure)
Wet Surface	N/㎟	3.3 (Concrete Failure)

Bonding Area: 40mm × 40mm
Prior to testing, the bonded specimen is trimmed along the outer edge using a diamond cutter.

Steel Ball Drop Impact Test

Drop Hight	Conditions
30㎝	No Failure
150㎝	No Failure
250㎝	No Failure

The coating is applied and cured to a concrete plate with a thickness of 10 mm.
A 289 g steel ball is dropped 30 times onto the coating from the specified heights.
