Low Viscosity Epoxy Resin for Civil Engineering

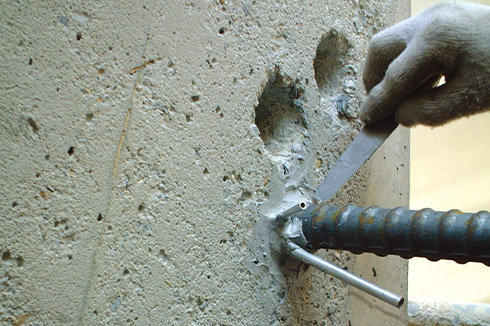

Concrete structure anchor filling.

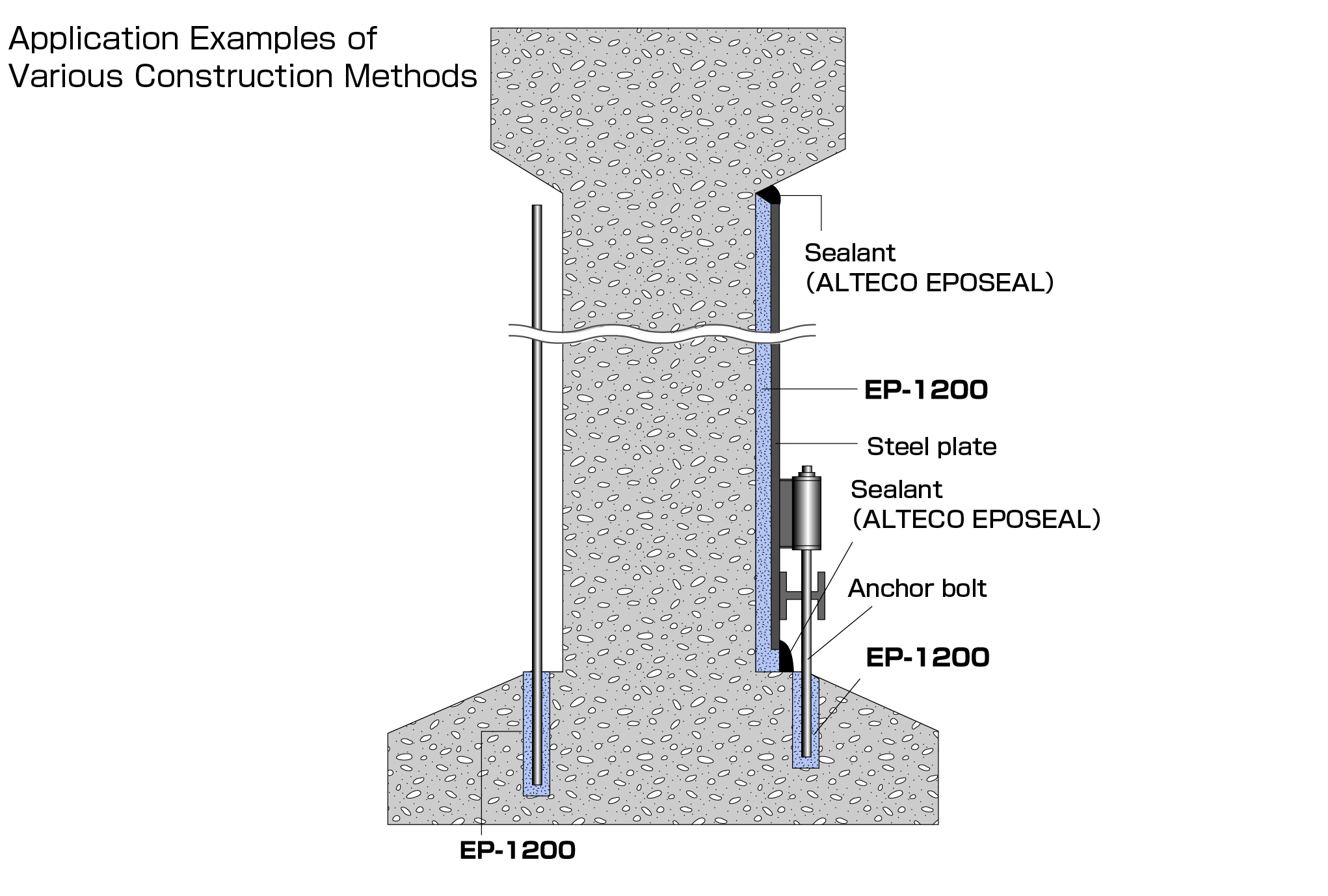

Steel plate wrapping injection.
Floor slab reinforcement injection.
Crack injection.

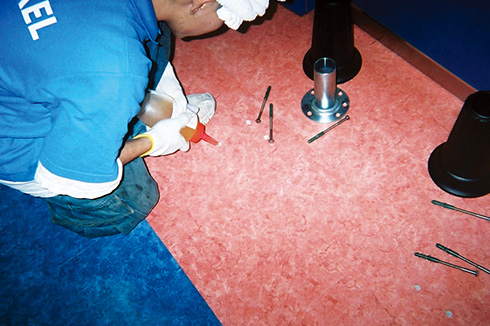

Various anchors and bolts fixing and bonding.
JAIA F★★★★/4VOC compliant
Features
Excellent mechanical strength and adhesion, demonstrating high anchor performance.
Good flow - Easy filling and injection.
Works on wet surfaces.
Solvent free - no volatile components.
Minimal shrinkage after curing.
Low odor formula ensures a comfortable working environment.
Properties
| EP-1200 (S) Summer version | EP-1200 (W) Winter version | |||
|---|---|---|---|---|
| Base Resin | Hardener | Base Resin | Hardener | |
| Main Component | Modified Epoxy Resin | Modified Polyamine | Modified Epoxy Resin | Modified Polyamine |
| Appearance | Colorless, Transparent Liquid | Pale Yellow, Transparent Liquid | Colorless, Transparent Liquid | Pale Yellow, Transparent Liquid |
| Mix Ratio | Base Resin：Hardener＝100：40 | Base Resin：Hardener＝100：40 | ||
| Viscosity After Mixing at 20℃ (m㎩・s) | 1000±500 | 1000±500 | ||
| Pot Life at 20℃ | 60min | 30min | ||
Cured Material Properties
| Unit | Internal Standard | Test Procedure | |
|---|---|---|---|
| Specific Gravity | 1.18±0.05 | JIS K 7112 | |
| Compressive Yield Strength | N/㎟ | ≧60 | JIS K 7181 |
| Compressive Modulus of Elasticity | N/㎟ | ≧1.5×103 | JIS K 7181 |
| Bending Strength | N/㎟ | ≧50 | JIS K 7171 |
| Tensile Strength | N/㎟ | ≧35 | JIS K 7113 |
| Tensile Shear Strength | N/㎟ | ≧14 | JIS K 6850 |
| Hardness | HDD | ≧80 | JIS K 7215 |
| Impact | kJ/㎡ | ≧3.0 | JIS K 7111 |
Test temperature: 20℃

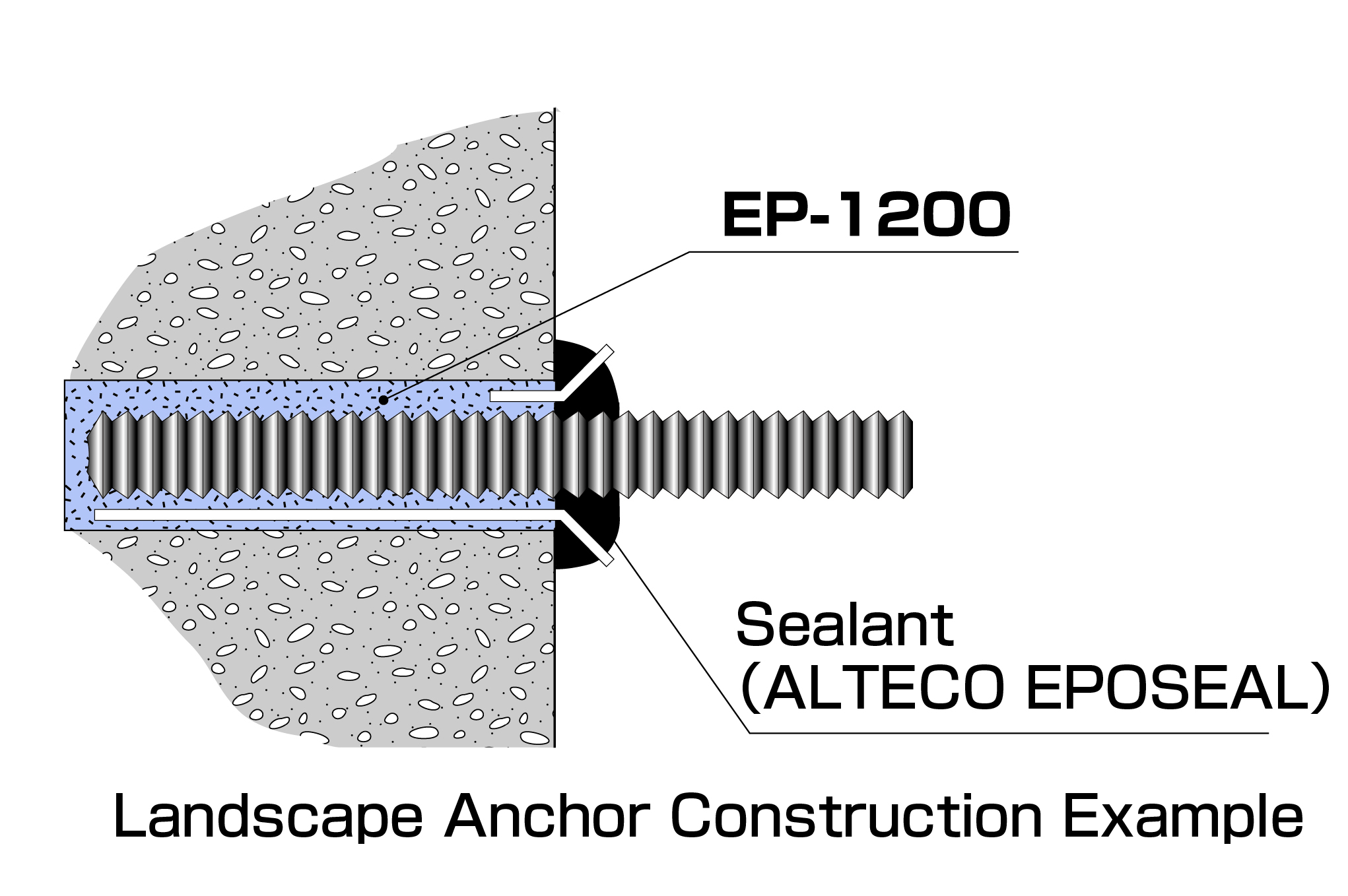

Anchor Bolt Installation Example
| Deformed Bar (D) Bolt Size (M) |
Hole Diameter (㎜) | Hole Depth (㎜) | Required Resin Amount (g) | Number of Applications per Set (pcs) | Yield Point of Steel (kN) | Allowable Tensile Stress (kN) |
|---|---|---|---|---|---|---|
| D25 | 36.0 | 380 | 275 | 50 | 174.8 | 116.5 |
| D29 | 40.0 | 440 | 382 | 36 | 221.8 | 147.9 |
| D32 | 42.0 | 480 | 401 | 34 | 274.0 | 182.7 |
| D35 | 46.0 | 530 | 529 | 26 | 330.0 | 220.0 |
| D38 | 50.0 | 570 | 664 | 20 | 393.3 | 262.2 |
| D41 | 55.0 | 620 | 908 | 15 | 462.3 | 308.2 |
| D51 | 65.0 | 770 | 1406 | 9 | 699.3 | 466.2 |
| M20 | 30.0 | 300 | 196 | 70 | 57.6 | 38.4 |
| M22 | 32.0 | 320 | 227 | 61 | 71.2 | 47.5 |
| M24 | 34.0 | 340 | 267 | 51 | 83.0 | 55.3 |
| M27 | 38.0 | 380 | 363 | 38 | 107.9 | 71.9 |
| M30 | 40.0 | 400 | 394 | 35 | 131.1 | 87.9 |
| M33 | 44.0 | 440 | 514 | 26 | 163.1 | 108.7 |
| M36 | 46.0 | 460 | 550 | 25 | 192.0 | 128.0 |
●The yield point of the rebar steel is the value obtained by multiplying the nominal cross-sectional area by the reference strength of SD345, 345 N/mm².
●The yield strength of the steel for the full-thread bolt is the value obtained by multiplying the base strength of SS400, 235 N/mm², by the effective cross-sectional area.
●Do not use for items with smooth surfaces, such as round bars, which may not exhibit sufficient strength.
●The number of applications per set (pcs) is approximate.
