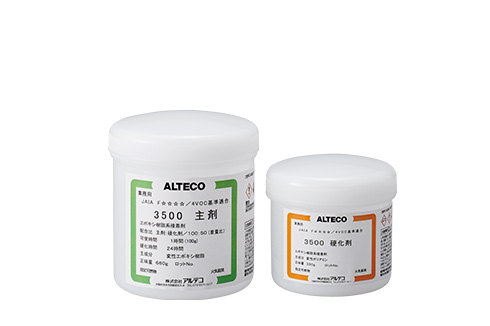

Thermal Resistant Two-Component Epoxy Adhesive
A room temperature curing epoxy adhesive with dramatically improved heat resistance-overcoming the conventional limitations of similar products.
Ideal for applications where heat curing is not possible, yet heat resistance is essential components and equipment.
Features

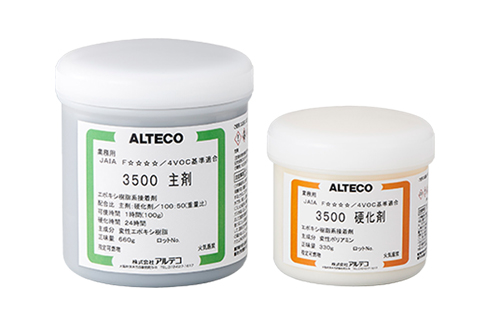

3500
High strength.
Also suitable for use on stainless steel and plated surfaces.
Paste, No sag.
3600
Clear version of 3500.
Low viscosity.
Suitable for large area and small parts bonding.
3900
Offers improved thermal resistance compared to 3500 and 3600.
No adhesion loss at 200oC for long period.
Low VOC / Formaldehyde Emission
Compliant with JAIA F★★★★ and 4VOC standards – Japan’s strictest safety criteria for indoor air quality.
Suitable for use in living spaces requiring low chemical emissions.
Product Description
| Product Number | 3500 | 3600 | 3900 | |||
|---|---|---|---|---|---|---|
| Base Resin | Hardener | Base Resin | Hardener | Base Resin | Hardener | |
| Appearance | Dark Green | Beige | Reddish Brown, Transparent | Yellow, Transparent | Yellow, Transparent | Brown, Transparent |
| Color After Curing | Dark Green | Dark Brown, Transparent | Dark Brown, Transparent | |||
| Main Component | Modified Epoxy Resin | Modified Polyamine | Modified Epoxy Resin | Modified Polyamine | Modified Epoxy Resin | Modified Polyamide Amine |
| Viscosity（m㎩・s/25℃） | Paste | Paste | 24000 | 1500 | 31000 | 3100 |
| Specific Gravity | 1.31 | 1.5 | 1.16 | 1.01 | 1.21 | 1.03 |
| Mixing Ratio | 100:50 | 100:32 | 100:25 | |||
| Pot Life at 25℃ (h) | 2 | 5 | 1.7 | |||
| Curing Time (h) RT | 24 | 24 | 24 | |||
| Curing Time at 80℃ (min) | 30 | 30 | 60 | |||
| Tensile Shear Strength (N/㎟) RT | 20 | 17 | 13 | |||
| Tensile Shear Strength (N/㎟) at 150℃ | 12 | 12 | 10（at 200℃） | |||
| Hardness (Shore D) | 80 | 80 | 80 | |||
| Shelf Life (Month) | 3 | 6 | 12 | |||
| Volume / Packing | Main Part：660g Plastic Jar | Main Part：758g Round Can | Main Part：750g Round Can | |||
| Hardener：330g Plastic Jar | Hardener：243g Tall Can | Hardener：250g Tall Can | ||||
