Epoxy Resin Adhesive for Civil Engineering
Used as a sealing material for anchor bolt resin injection methods and for crack injection to prevent leakage.
Features

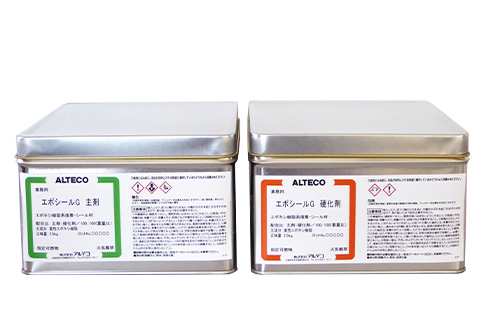

ALTECO EPOSEAL
・Excellent adhesion and mechanical strength.
・ALTECO EPOSEAL G can be mixed, applied, and installed using a spatula or similar tool.
・ALTECO EPOSEAL W can be mixed and applied by hand, making it ideal for small-scale applications.
・Can be used on wet surfaces.
・Solvent-free and contains no volatile components.
・Minimal shrinkage after curing.
・Excellent water and chemical resistance.
Low VOC / Formaldehyde Emission
Compliant with JAIA F★★★★ and 4VOC standards – Japan’s strictest safety criteria for indoor air quality.
Suitable for use in living spaces requiring low chemical emissions.
Typical Applications

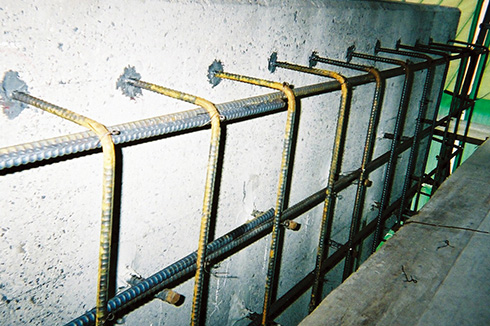

・Sealant of Resin Grouting Method for Anchor Bolts.
・Manhole bonding.
・Crack injection sealing.
Properties

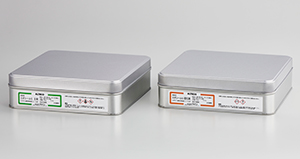

| ALTECO EPOSEAL G Spatula Application | ||
|---|---|---|
| Base Resin | Hardener | |
| Main Component | Modified Epoxy Resin | Modified Polyamine |
| Appearance | White Paste | Gray Paste |
| Mix Ratio | 100：100 | |
| Pot Life at 20℃ | 60min | |
| ALTECO EPOSEAL W (W) Hand Mixing | ||
|---|---|---|
| Base Resin | Hardener | |
| Main Component | Modified Epoxy Resin | Modified Polyamine |
| Appearance | Gray Putty | Dark Gray Putty |
| Mix Ratio | Base Resin：Hardener＝100：100 | |
| Pot Life at 20℃ | 30min | |
Cured Material Properties
| Unit | Internal Standard | Test Procedure | ||
|---|---|---|---|---|
| ALTECO EPOSEAL G | ALTECO EPOSEAL W (W) | |||
| Specific Gravity | 1.7±0.2 | 1.7±0.2 | JIS K 7112 | |
| Compressive Yield Strength | N/㎟ | ≧65 | ≧65 | JIS K 7181 |
| Bending Strength | N/㎟ | ≧40 | ≧40 | JIS K 7171 |
| Tensile Strength | N/㎟ | ≧20 | ≧20 | JIS K 7113 |
| Tensile Shear Strength | N/㎟ | ≧14 | ≧14 | JIS K 6850 |
Test temperature: 20℃
